Skirted Bed

Gooseneck Rating

30,000 lb

Bumper rating

18,500 lb

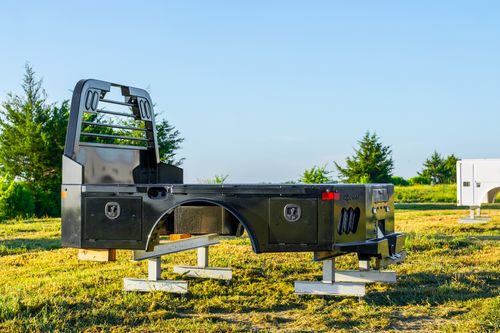

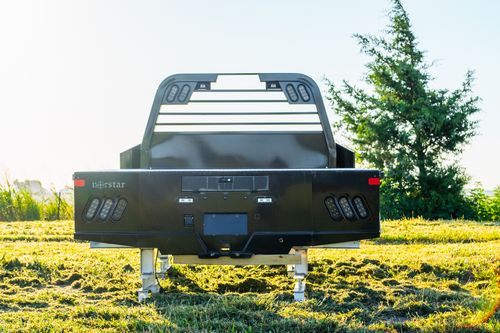

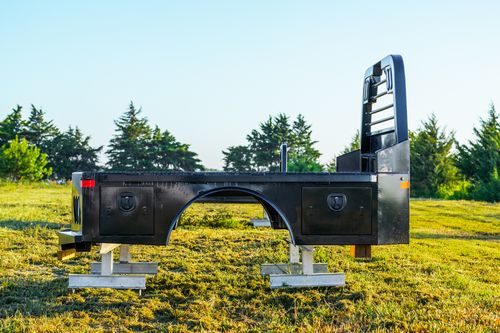

Built for serious hauling, all-day productivity, and designed with durability and versatility in mind, the ST comes equipped with four toolboxes, integrated rub rails for added cargo control, and optional features like bale spikes and a gooseneck trough to meet the demands of your specific workload. This bed is the perfect fit for any single or dual wheeled work truck and can keep up with your daily grind.

‍

REQUEST A QUOTE

add review

Standard Features

NEW REAR LOCKABLE COMPARTMENT

2 NEW REAR WORK LIGHTS W/ SWITCH, 40W EACH

2 NEW WORK LIGHTS IN HEADRACK W/ SWITCH, 20W EACH

UPGRADED 3/4” LED MARKER LIGHTS

NEW NOTCHED HEADRACK FOR GN CAMERA

UPGRADED SMOKED LIGHTS

UPGRADED DEF & FUEL TOGETHER

NEW CAMERA KNOCKOUT W/ MOUNTING BRACKET

NEW CENSOR KNOCKOUT

NEW SPARE TIRE KNOCKOUT

BOLT-ON HINGES

T-HANDLE COMPRESSION LATCH

Bolt On Hinges

3/4” LED Bullet Lights

4 Toolboxes with Whale Tail Compression Latch

Headrack Work Lights

Structural Steel Frame

2.5” 18.5k Rated Receiver

30k Rated 2 5/16” GN Ball

4” Runner Channels

Formed 3 x 3/16” Channel Cross Members

Steel Tube Notched Head Rack with Cross Bars, Tail & Rev. Lights

Steel 1/8” Diamond Plate Floor

Primer & Powder Coated Black

Built in Gooseneck Well w/ Ball Mounted & Diam Plate Lid

Angled Fuel Filler Neck & DEF Ready

Skirted Smooth Plate Rear Bumper with Anti-Slip Step

Removable Black Smooth Fender Flares

12Ga Steel Construction with 11Ga Bumper

4 Smoked 6” Oval LED Reverse Lights

6 Smoked 6” Oval LED ST/TL/TN Lights

Single LED License Plate Light

Molded Sealed Harness with Resistors

4/5 & 7 Way Receiver Female Plug with Adapter

Mudflap Brackets

7-Way Plug in Gooseneck Well

‍

options

Appearance Packages Available

P01: Rear Stake Pockets w/ Rub Rail

Extend Head Rack From Standard Height

P02: (Includes 2 Items Listed Below)

Aluminum Diamond Plate Trim

Smooth Stainless Steel Polished Fender

P03: (Includes 5 Items Listed Below)

Chrome Accent Light Package

Aluminum Cast Rear License Plate Housing

Chrome Tail Light Housing (Not available on SRW)

Smooth Stainless Steel Polished Fenders

Diamond Plate Trim

Gooseneck Trough

B & W Turnover Ball 2-5/16"

‍

bed size guide

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

Length: Measurement from cab to end of frame.
Width: Measurement from outside of tire to outside of tire
CTA: Measurement from cab to axle
Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
Models: ST, SF, SR, SD
Order Method: Model x Length x Width x CTA x Runner
Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

‍

1998-Present

Dually – 8’6”L x 97”W x 56” CTA x 38” Runners
Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 38” Runner
Single Wheel Short Wheel Base – 84”L x 84”W x 40”CTA x 38” Runner
Cab & Chassis – 9’4”L x 94”/97''W x 60”CTA x 34” Runners
F-450 & 550 are 94” & 97”W with Standard Headache Rack
2015 F650 Runners 34.5”

‍

2001-Present

Dually – 8’6”L x 97”W x 56”CTA x 42” Runners
Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 42” Runner
Single Wheel Short Wheel Base – 84”L x 84”W x 42”CTA x 42” Runner
Cab & Chassis – 9’ 4”L x 90” or 92”W x 60”CTA x 34” Runners
(Prior to 2000 measurements will be required)
4500 & 5500 is 94”W with 60” Headache Rack

‍

2003-Present

2007 Cab and Chassis – 9’4”L x 94”W x 60”CTA x 34” Runner
Mega Cab – 84”L x 97”W x 40” CTA x 42” Runners
Mega Cab – 84”L x 84”W x 38” CTA x 42” Runners
Dually – 8’6”L x 97”W x 58”CTA x 42” Runners
Single Wheel Long Wheel Base – 8’6”L x 84”W x 58”CTA x 42” Runner
Single Wheel Short Wheel Base – 84”L x 84”W x 38”CTA x 42” Runner
2002 and earlier will have 56” CTA and 38” Runners on long bed

‍

Plug N Play

Installation Adapters

The standard wire harness plug on Norstar beds will fit most GM vehicle factory harnesses. We also offer a variety of plug n play adapters that will vehicles year models by the following manufacturers:

1001010 WIRE HARNESS ADAPTER DODGE, CAB CHASS (YEAR 2000-CURRENT)
1001009 WIRE HARNESS ADAPTER FORD, CAB CHASS (YEAR 2000-CURRENT)
1001011 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE CURRENT (YEAR 2011-CURRENT)
1001013 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE w/ STOP ADAPTOR (YEAR 2011-CURRENT)
1001012 WIRE HARNESS ADAPTER GM, ADAPTER (YEAR 2015)
1001014 WIRE HARNESS ADAPTER GM, PICK-UP BOX DELETE (YEAR 2010-2014)

‍
